Raspberry Pi 4 model B mini desktop computer 1GB 2GB 4GB 8GB

Product Item: Pi 4 model B 4B
Category: Products
Views: 816
Raspberry Pi 4 model B
mini desktop computer
1GB 2GB 4GB 8GB
tiny, dual-display, desktop use
robot brains
media centre
smart home hub
networked AI core
factory controller
Product Manual:Raspberry Pi 4 model B desktop computer 1GB 2GB 4GB 8GB

Your tiny, dual-display, desktop computer
…and robot brains, smart home hub, media centre, networked AI core,
factory controller, and much more
  • Feature
  • Specification


Completely upgraded, re-engineered

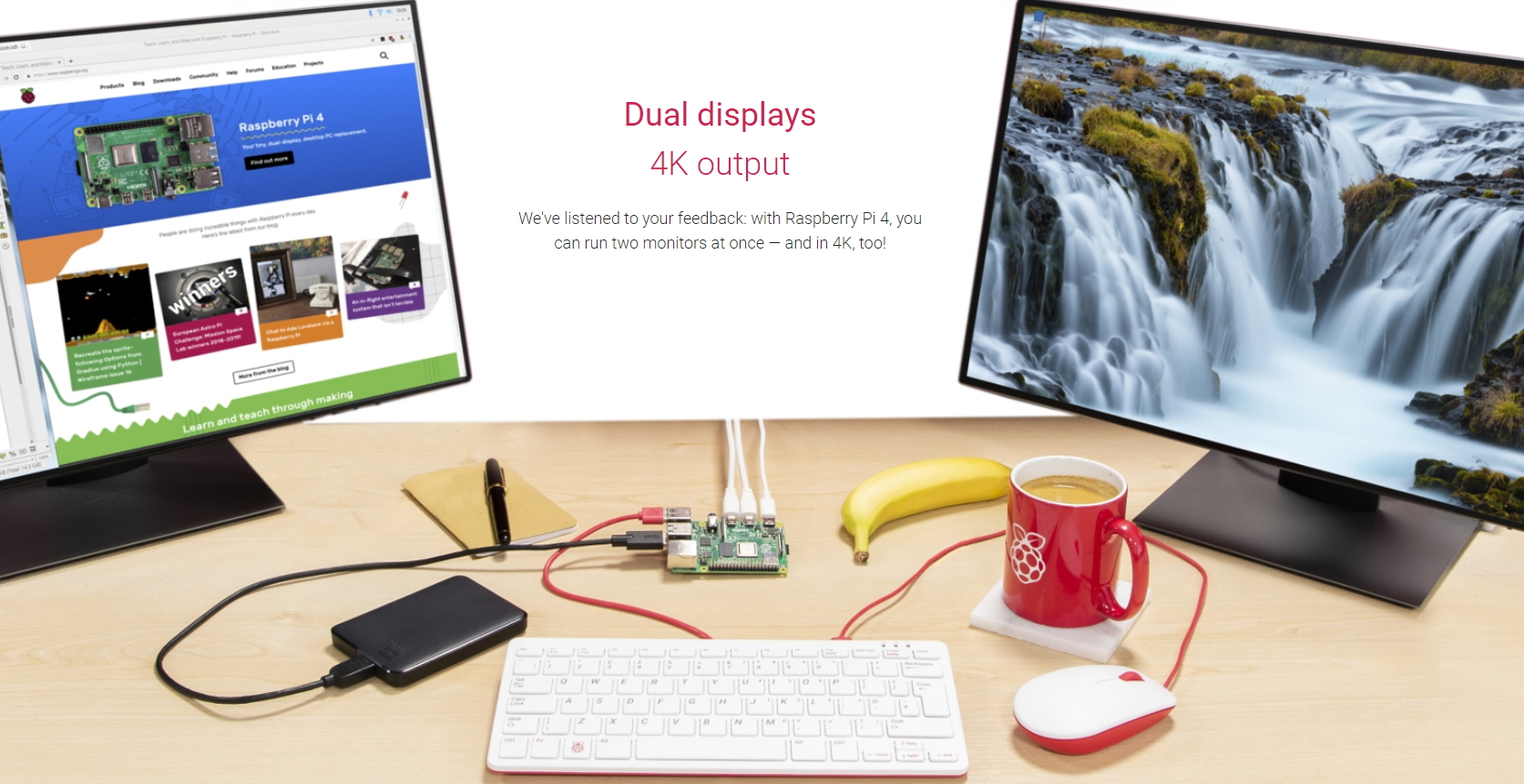

Faster, more powerfulDual display4K outputwith Raspberry Pi 4, you can run two monitors at once — and in 4K, too!

Your new desktop computer

The speed and performance of the new Raspberry Pi 4 is a step up from earlier models. For the first time, we've built a complete desktop experience. Whether you're editing documents, browsing the web with a bunch of tabs open, juggling spreadsheets or drafting a presentation, you'll find the experience smooth and very recognisable — but on a smaller, more energy-efficient and much more cost-effective machine.

  • Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • Memory: 2GB or 4GB LPDDR4(depending on model)
  • Connectivity:
    • 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
    • LAN, Bluetooth 5.0, BLE
    • Gigabit Ethernet
    • 2 × USB 3.0 ports
    • 2 × USB 2.0 ports
  • GPIO: Standard 40-pin GPIO header(fully backward-compatible with previous boards)
  • Video & Sound:
    • 2 × micro HDMI ports (up to 4Kp60 supported)
    • 2-lane MIPI DSI display port
    • 2-lane MIPI CSI camera port
    • 4-pole stereo audio and composite video port
  • Multimedia:
    • H.265 (4Kp60 decode)
    • H.264 (1080p60 decode, 1080p30 encode)
    • OpenGL ES, 3.0 graphics
  • SD card support: Micro SD card slot for loading operating system and data storage
  • Input power:
    • 5V DC via USB-C connector (minimum 3A)
    • 5V DC via GPIO header (minimum 3A)
    • Power over Ethernet (PoE)–enabled(requires separate PoE HAT)
  • Environment: Operating temperature 0–50ºC
